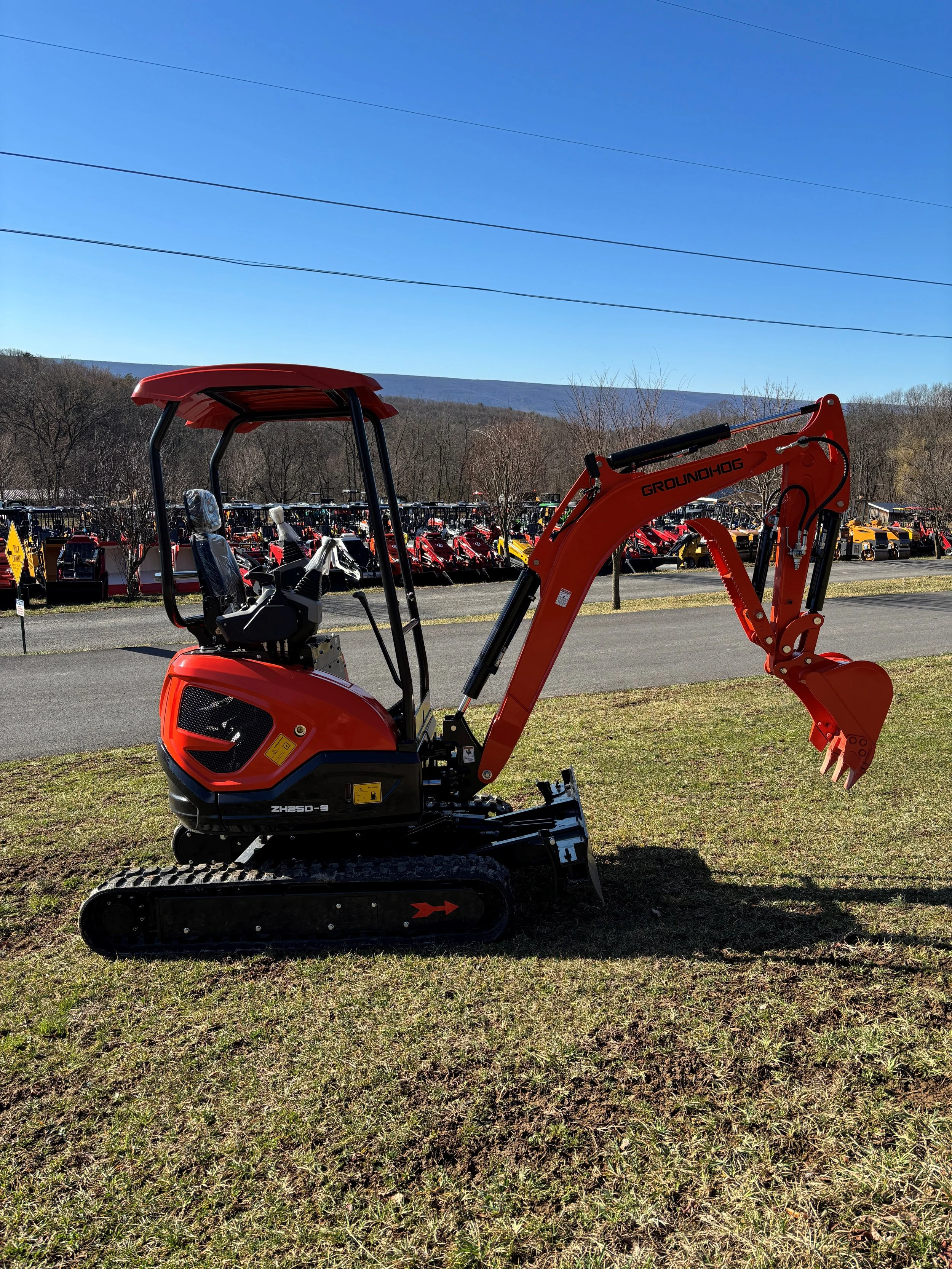

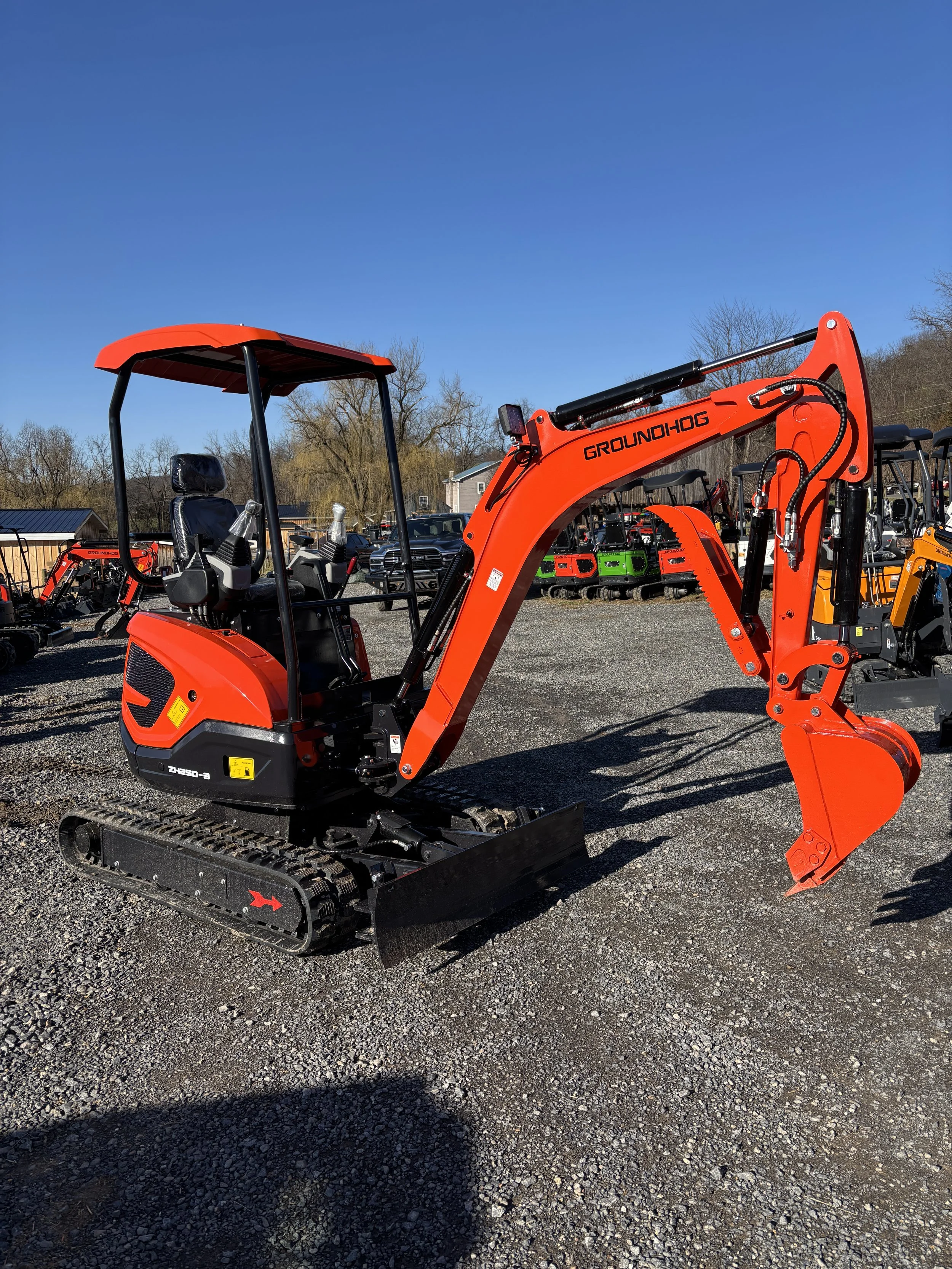

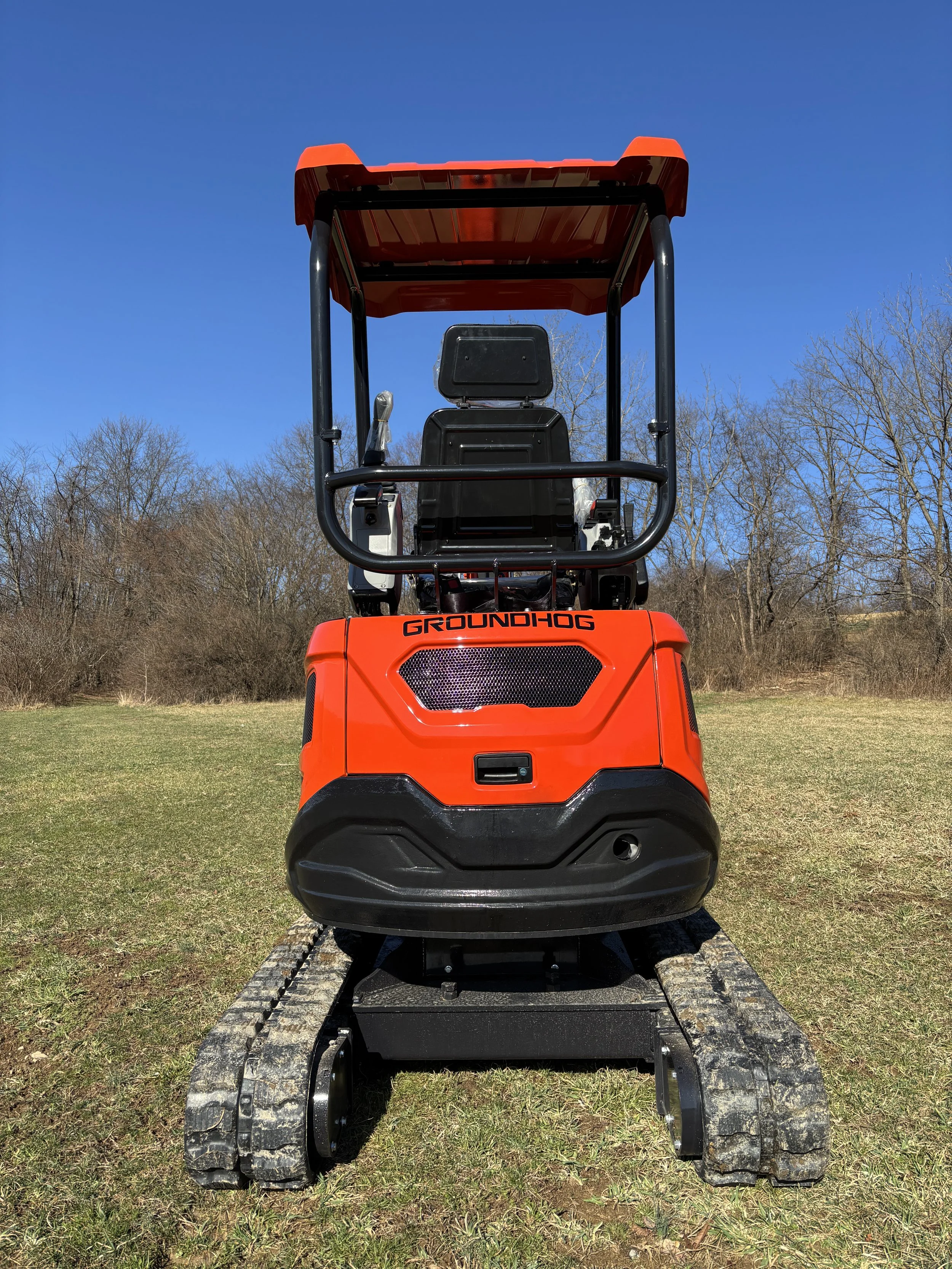

ZH25d-3

Starting at $21,900 Open Cab & $23,900 Enclosed Cab

MSRP on entry package, transportation and preparation fees may vary based on selection.

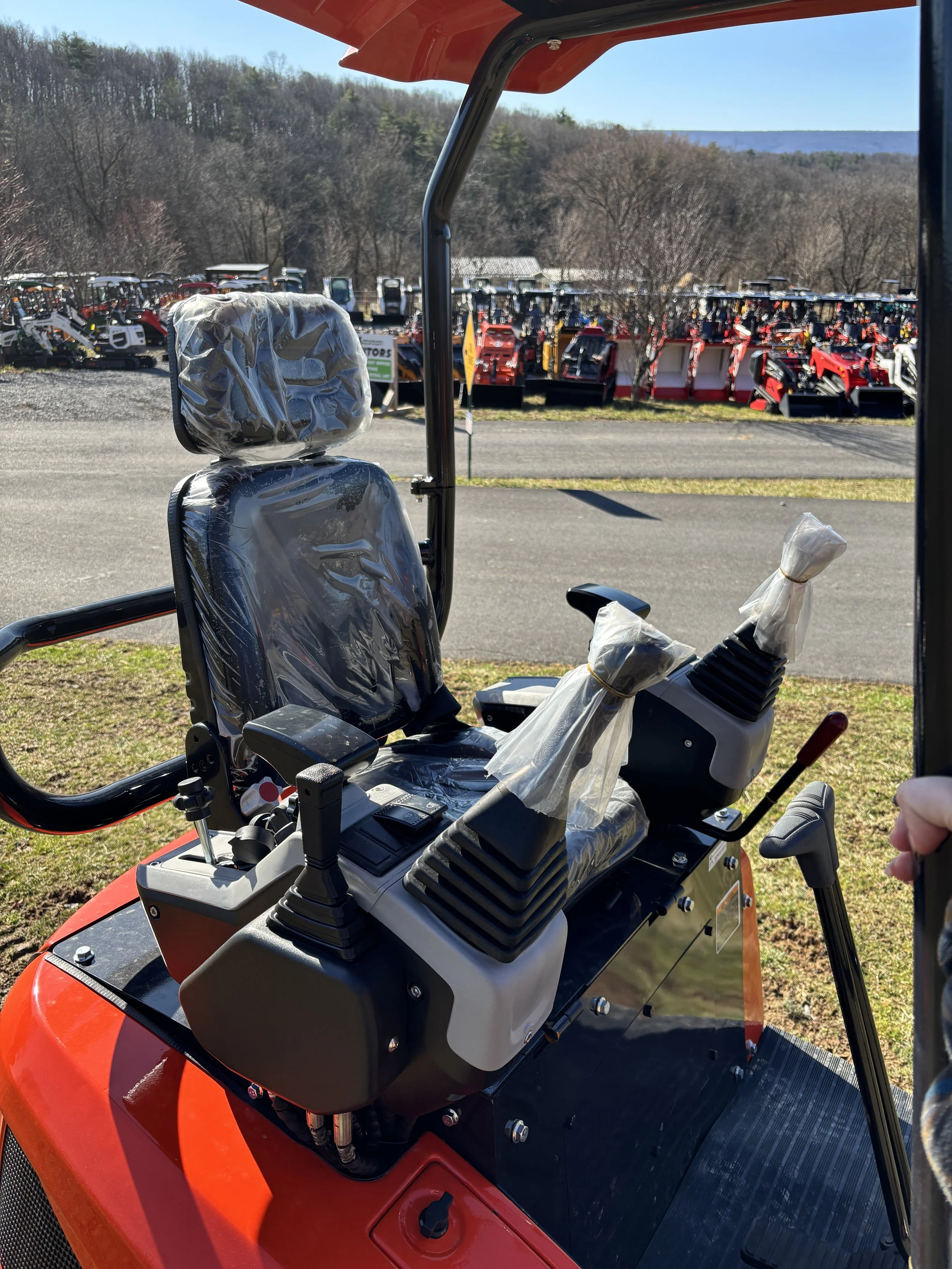

All ZH25D-3 models come equipped with a 25 HP Kubota D1105 Diesel engine, 4 Post Canopy, Hydraulic Joysticks, Glow Plugs, Oil Cooler, and Side Swing Boom.

Call Now
Get Loan Offers

  • Operating Weight – Rubber Tracks 4740 lbs.

    Operating Weight – Steel Tracks5160 lbs.

    Engine - Kubota D1105

    Engine HP - 25 HP

    Travel Speed - 2.7-4.6 km/h

    Machine Width - 41″ | 40-49″

    Machine Height - 7’6″

    Ground Clearance - 6″

    Track Length - 5′ 10″

    Track Size - 250x72x53″

    Track To Blade - 78″

    Track Width - 9″

    Max Digging Depth - 8’4″

    Max Dumping Height - 8’8″

    Max Digging Radius - 13′ 7″

    Auxiliary Flow Rate - 14 gpm

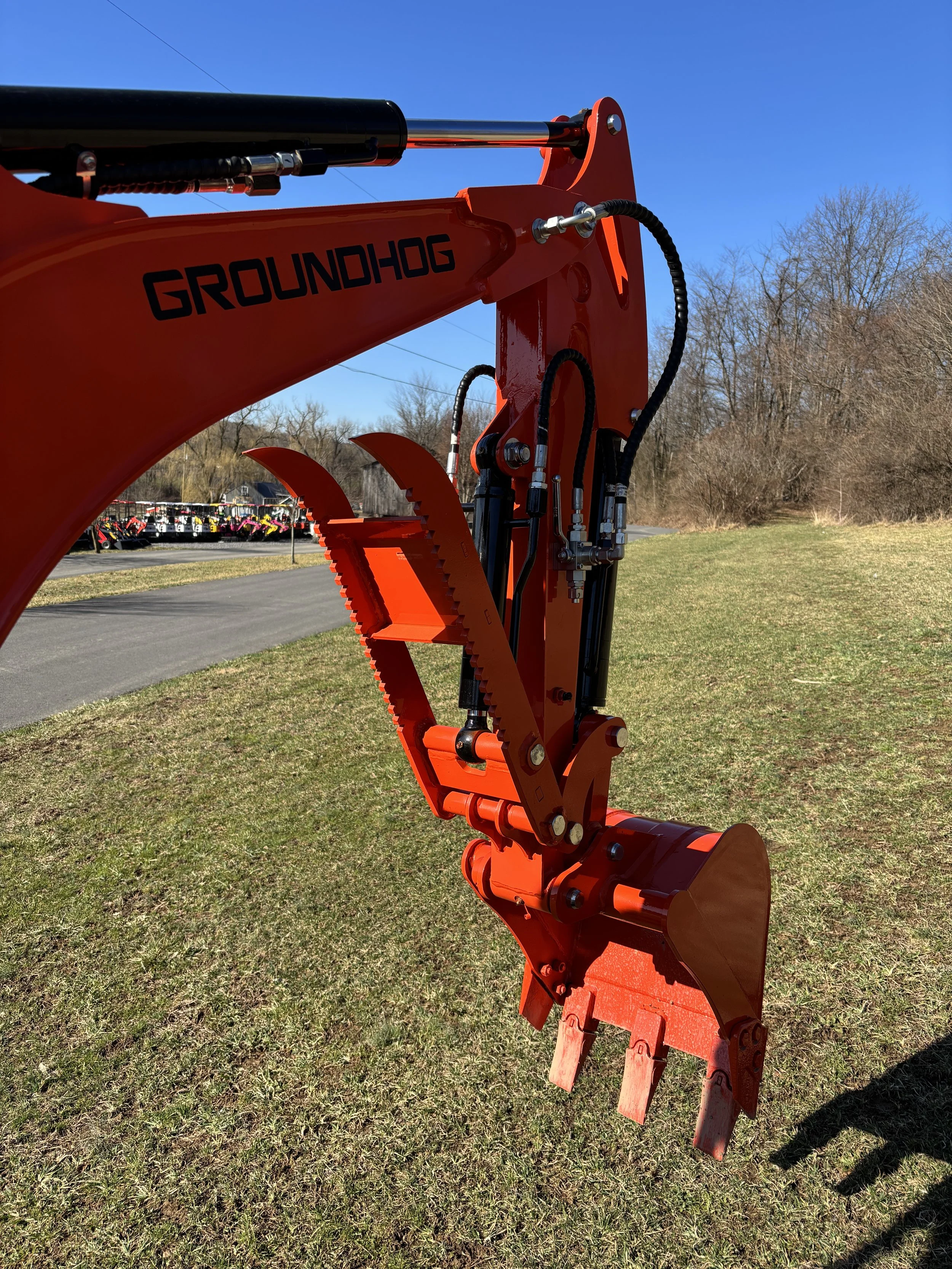

    Bucket Size - 18″ Tooth

    • 2 Speed

    • Retractable Tracks

    • Window Tint

  • Powertrain items consist of the engine, both drive motors, hydraulic pump, swing motor, and central pivot valve body. Warranty does not cover wear items such as lines, cylinders, tracks, pins, blades, seat, undercarriage, etc.
